athlon Heras riflescope

Athlon Heras SPR 6-24X56 rifle scope

INTRODUCTION

I remember when the best features in a rifle scope would cost a guy a handsome salary. A while ago, an entry-level good scope was over a thousand dollars, and if you wanted everything, it could quickly go north of two thousand. Today, I bring another excellent example of a good scope that won’t cause your wife to leave you: The Athlon Heras SPR 6-24X56 rifle scope.

For those younger shooters out there, you are living in the golden age of rifle scopes because nowadays, you can get all the best features stacked deep in a scope for well under a grand.

This review and others are brought to you by Gunmade.com check us out!
Athlon Heras 6-24X56 FFP Scope Review on desert tech srs a2 covert

Athlon is one of many scope manufacturers importing inexpensive rifle scopes to the US market. These scopes have all the great features we marksmen look for, like first focal plane reticles, zero-stops, etc.

The Heras brings high magnification and quality optics with all the tactical features for a price that would make twenty-years-ago-me blow a primer.

I am always excited to get my hands on a new scope and see how it measures up to the others I am fortunate to own. After opening the box and playing with it for a few hours, I was already impressed. Come along with me on this ride to see how the Heras stacks up against the competition.

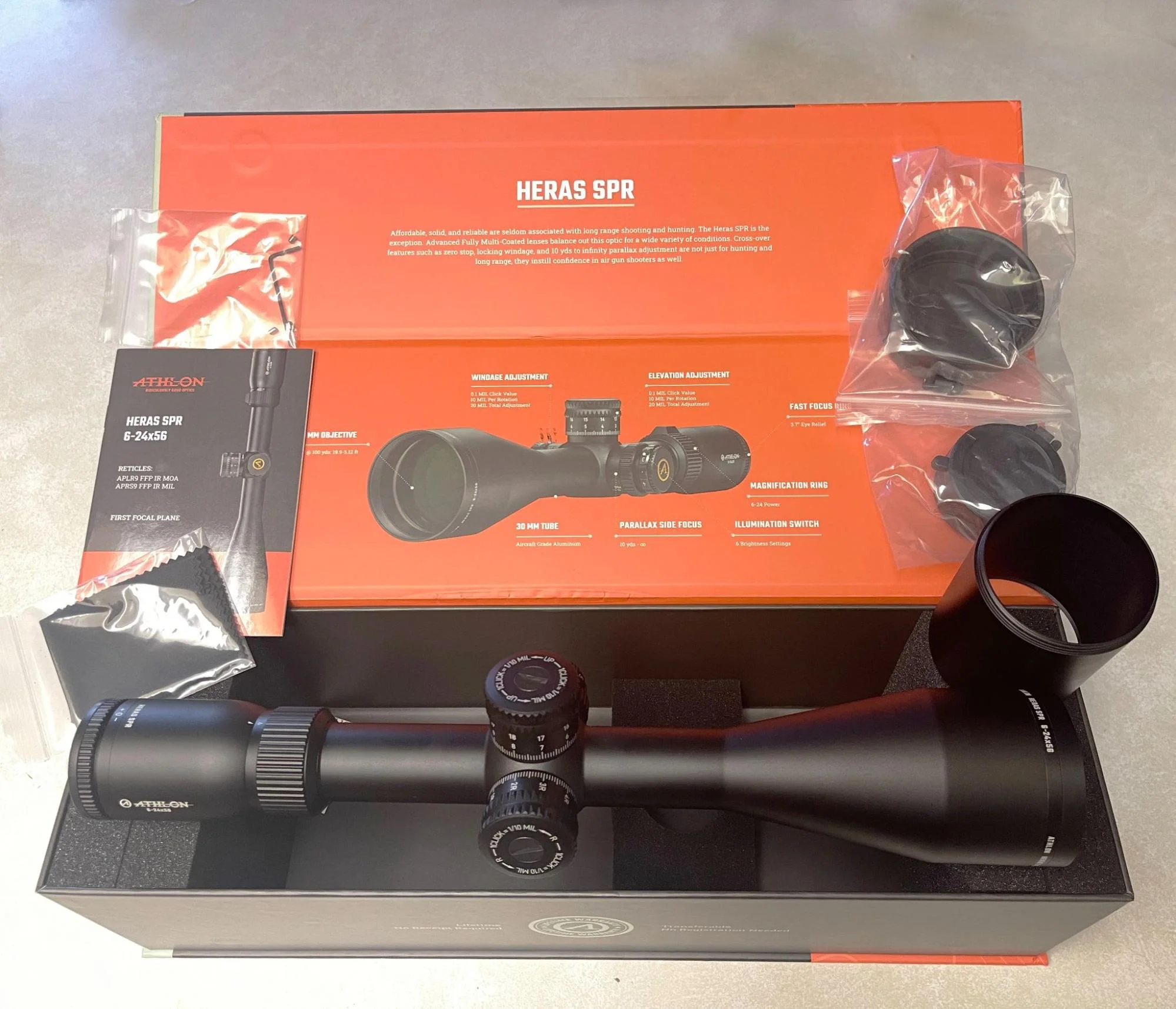

Athlon Heras 6-24X56 FFP Scope unboxing
The Heras and accessories were nicely packaged.

The Athlon Heras SPR seeks to fill a spot in the ever-larger precision rifle scope market. The massive increase in precision rifle shooting has led many companies to launch new optics brands to capture some of the market. Even the big names in optics have released additional optics lines that offer customers something more affordable.

Brands like Athlon and others are bringing down the entry cost to this type of shooting, and the Heras is a perfect place to start. Like many of the other less expensive optics brands, the Athlon is made overseas. For some folks, this is a big deal; for others, not so much.

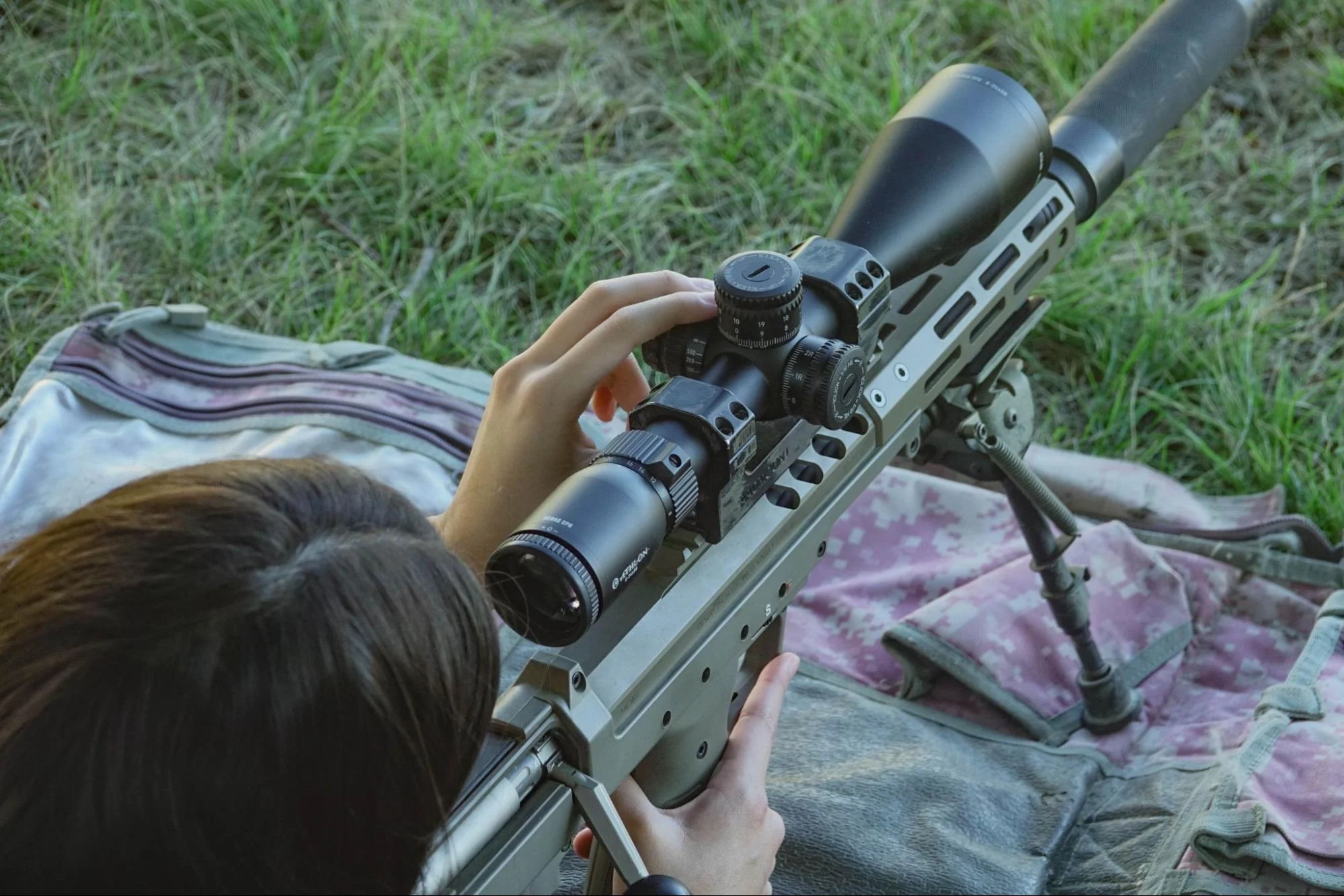

Athlon Heras 6-24X56 FFP Scope zeroing
Adjusting the parallax

SPECIFICATIONS

Magnification6-24
Tube Diameter30mm
Objective Lens Diameter56mm
ReticleAPRS9 MRAD Front Focal Plane
Reticle IlluminationRed
Length14.4 inches
Weight32.3 ounces
Eye Relief3.7 inches
Athlon Heras 6-24X56 FFP Scope product specs from box
A quick glance at all of the specs.

PROS & CONS

PROS

  • Cost-effective
  • High optical clarity
  • Detailed and useful reticle
  • Precision zero-stop
  • 10 MIL turrets (locking turrets)
  • Included sun shade and flip-caps

CONS

  • Made in China

ON THE RANGE TESTING

To give the Heras a good test, I decided to mount it up one of my favorite rifles: the Desert Tech SRS A2 Covert. For testing, I installed the .308 Winchester barrel for easy and predictable performance.

To fully take advantage of the scope’s internal elevation, I installed it in a 20 MOA canted scope mount. The cant offset requires you to zero your scope further away from its internal mechanical limit. This allows you additional elevation capability for shooting long-range that you would otherwise not have if you used straight scope rings.

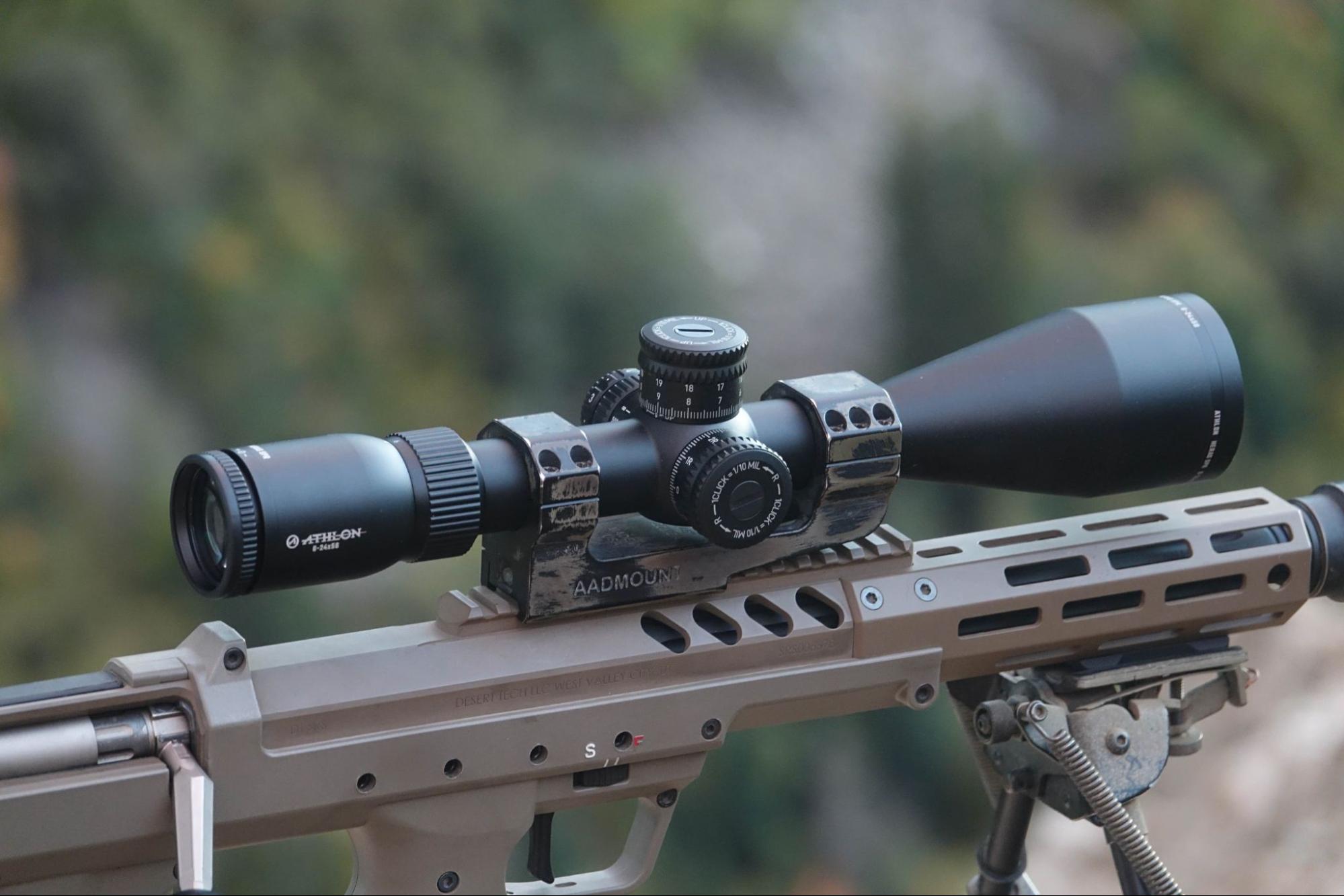

Athlon Heras 6-24X56 FFP Scope mounted on desert tech srs a2 covert full build
The Heras with its sunshade in place

With the scope mounted and torqued into place, the rifle was ready to hit the range. But before heading out, I bore-sighted the combination. My first trip out with the Heras was an evening jaunt up into the beautiful falltime Rocky Mountains. The fading evening light would make an excellent time to see how the scope would fare in such conditions.

After zeroing the scope to the rifle, I loosened the turret screws and set the zero. You rotate the ring until it hits the stop, and then tighten up the screws to set the zero-stop. I like how this zero-stop works, using a hard stop where the protruding ring stud hits an opposing stud on the base. This makes for a robust zero-stop that isn’t mushy and always stops at the same spot.

Athlon Heras 6-24X56 FFP Scope hands on test in mountains
The Heras was a good fit for my Desert Tech SRS A2 Covert .308 Winchester

Now, it was time to see how the Heras performed. As the sun made its way behind the cloudy mountains in the west, I peered through the scope at the colorful ridges and canyons around me.

I spent some time inspecting rocks and trees from as close as two hundred yards and as far as a mile away. Using the parallax adjustment to focus the image, I was pretty pleased with how things looked. I also varied the magnification setting as I moved from one target to another to see how the image quality varied. As well as contrasting the reticle against the background to evaluate its utility.

HOW WE TESTED

Athlon Heras 6-24X56 FFP Scope aerial view
Getting ready to take a shot.

Since the Athlon Heras is likely to be used by competitive shooters and long-range hunters alike, I figured stretching it out in these Rocky Mountains would be an excellent way to test its function.

The predictable accuracy of my Desert Tech SRS and the consistency of .308 Winchester would make it easy to tell if the Heras was up to the mark. After zeroing the scope, I shot a few groups to ensure we had a baseline for accuracy.

I then stretched out the shooting to distances beyond one thousand yards to give the scope’s erector a good workout. I shot back and forth between an easy target at 330 yards and another good target at 870 yards to see how I could keep consistency. Using the reticle to hold my windage correction was convenient, as these mountains’ winds are hardly consistent.

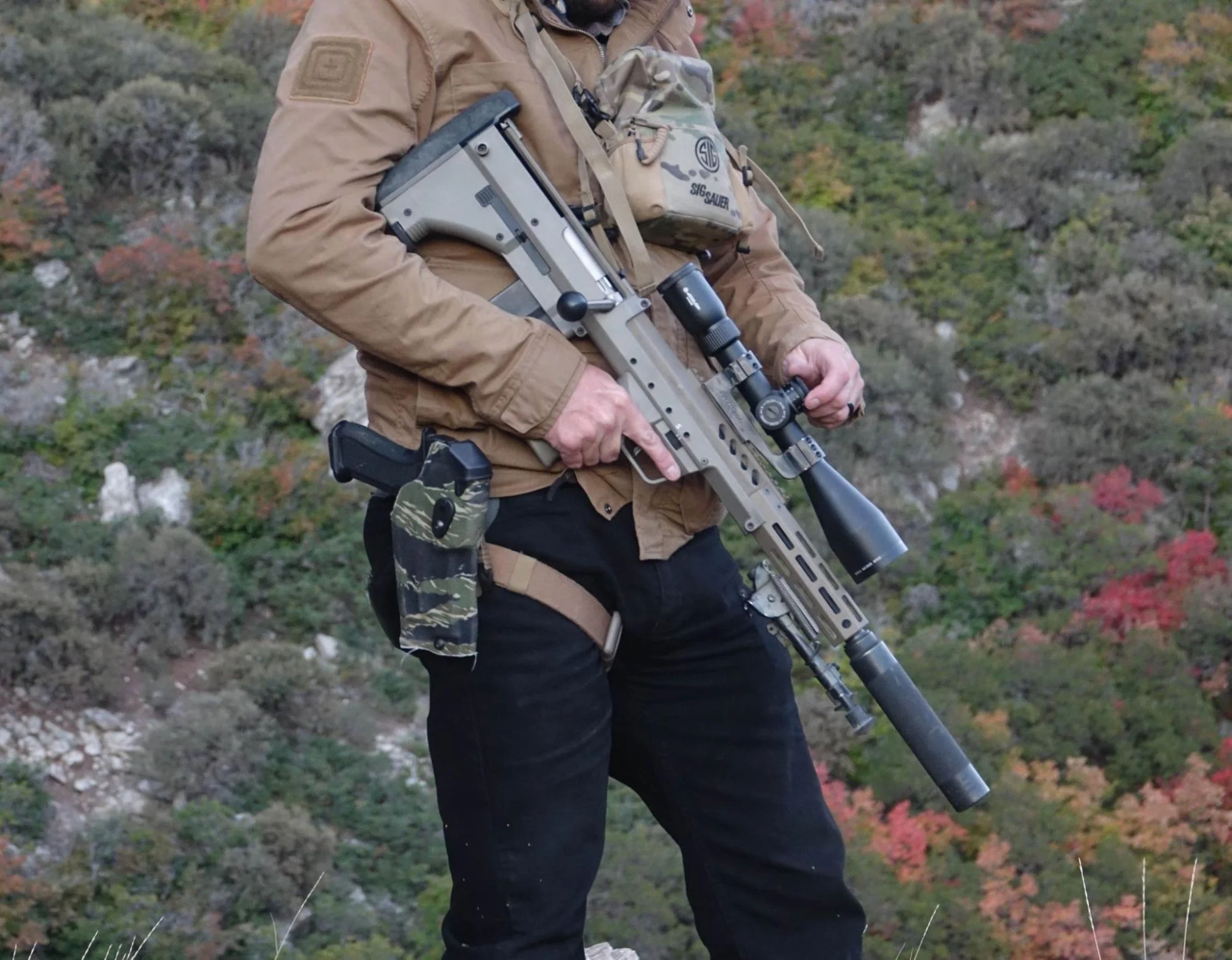

Athlon Heras 6-24X56 FFP Scope hands on with duty pistol
On the move and making adjustments accordingly.

RELIABILITY

Less expensive rifle scopes from overseas often look good but don’t have the internal performance sought after by dedicated marksmen. That is one thing that is an absolute must for me. I’d rather have a scope with a lower optical performance but reliable internal mechanics.

The erector assembly inside the scope has to move reliably and consistently. Cheaper-built scopes can often suffer from inaccurate erector travel or induce cant as they are adjusted up and down in elevation or windage.

I dismounted it from the rifle to see how the Athlon Heras measured up and clamped it down to a firm workbench. With the scope keenly focused on a building outside, I measured the travel of the erector up and down as compared to the reticle values.

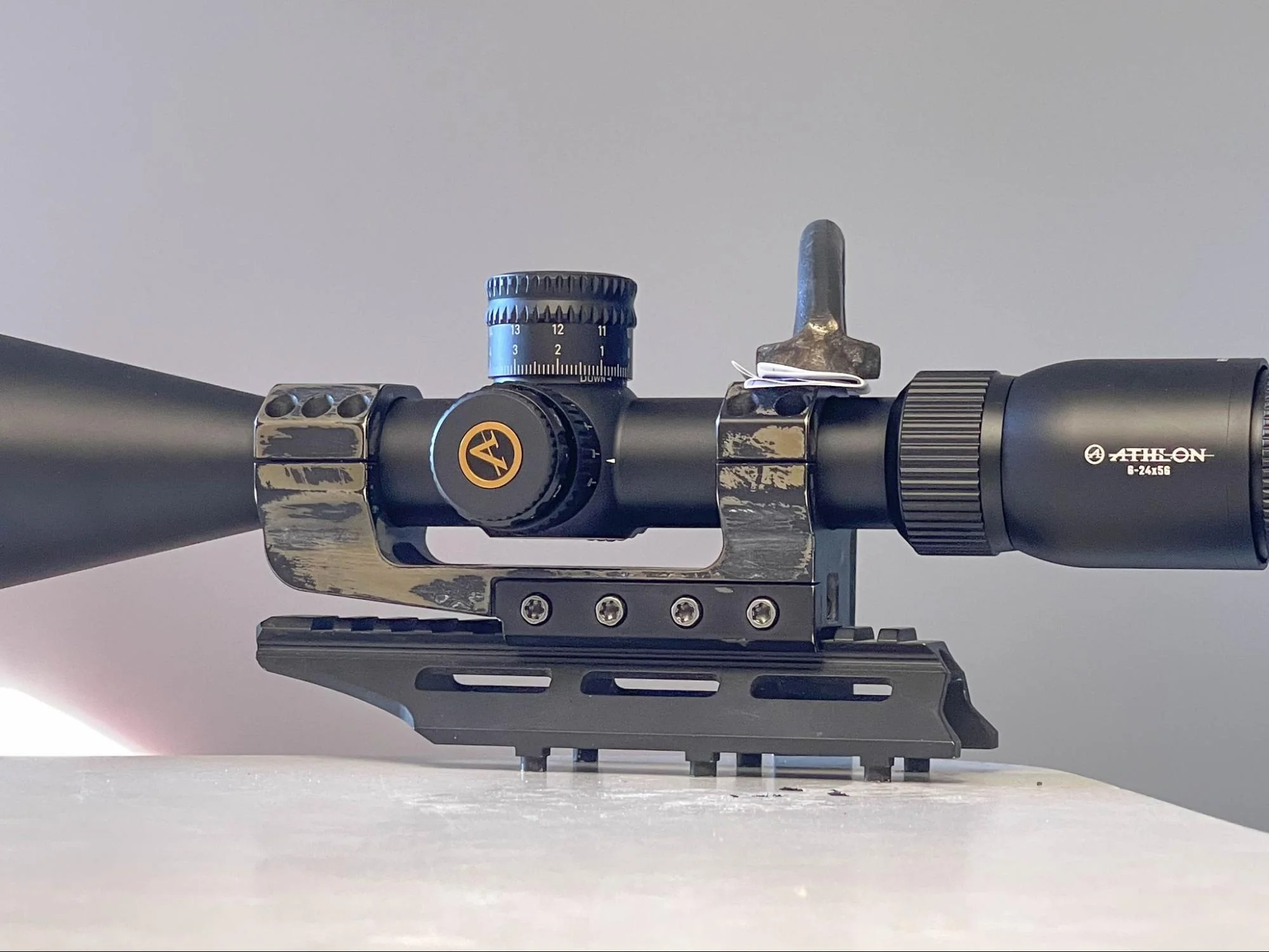

closer look at the mount holding the Heras
Testing the Heras SPR and its tracking, you can read more about that here

Measuring ten MRAD with the reticle and dialing ten MRAD on the turret resulted in perfect alignment. I repeated the process over and over to the entire mechanical movement of the erector and left and right movement with the windage turret.

I also adjusted the magnification to both extremes to see if I could perceive any reticle cant. To my gratification, I couldn’t see enough inaccuracy to worry about. For the most part, everything stayed plumb and accurate. There may have been a tiny bit of slop when returning to zero, but not enough to concern me.

I also noted that the 30mm tube provides less movement than the larger 34mm scopes, but this would have only been an issue when dialing significant wind holds at extensive ranges.

FIT AND FINISH

The Heras is a handsome scope, and at this price point, you would have taken the entire market twenty years ago. The scope’s finish is certainly on par with its price point, as are the control labels.

Personally, I’m not a massive fan of rounded edges, but obviously, this is a subjective opinion. It might be better due to reduced snagging points.

The lens coatings and the lenses themselves do a great job of gathering enough light to present a clear image to my eye. Even in the lower light of the evening, I found the scope to present a great image.

Like all scopes, it loses some brightness and detail at the very high end of its magnification, but that was no surprise.

OVERALL FEEL

The feel of the scope on my rifle was great, and it wasn’t exceptionally lightweight compared to some of its competition. But I certainly didn’t feel like it was an issue.

athlon heras scope view from front controls

The controls on the Heras are smooth and have just the right amount of tension built in. I’m not too fond of controls that are too easy to adjust or too hard. The turrets had enough resistance to prevent accidental turning but were not too hard to adjust from the shooting position. The clicks were audible and easy to feel, if anything, too much. But this isn’t a big deal.

FEATURES

10 MIL TURRETS

I am a big proponent of ten or more MRAD turrets. Many inexpensive scopes use smaller measurements like five, six, or eight MRAD turrets. With each turret rotation, the total elevation come-up can help keep track of your shooting.

For example, if your scope has five MRAD turrets, and you need to dial 12.8 MRAD, you could lose track of your rotation. Particularly because five MRAD turrets usually have five or six rotations in them, and if you lose track in the heat of competition or a hunt, this could be catastrophic.

Ten MRAD turrets are much easier to keep track of. If you dial the same 12.8 MRAD, you know you’re only on your second rotation. This results in ten MRAD turrets having fewer rotations, often only having two to three total turns.

athlon heras scope adjusting controls
Positive clicks are both felt and heard

ZERO-STOP

The zero-stop feature in the Heras scope creates an adjustable physical stop on the elevation turret. Once your rifle is zeroed, you can set the zero-stop so the turret will not dial below your desired zero distance.

This is very convenient as you can always know that when the turret bottoms out, you are at your zero. There is no guessing what rotation of the scope you are on or any of that nonsense.

The zero-stop was easy to set and pretty self-explanatory if you don’t read the instructions like me.

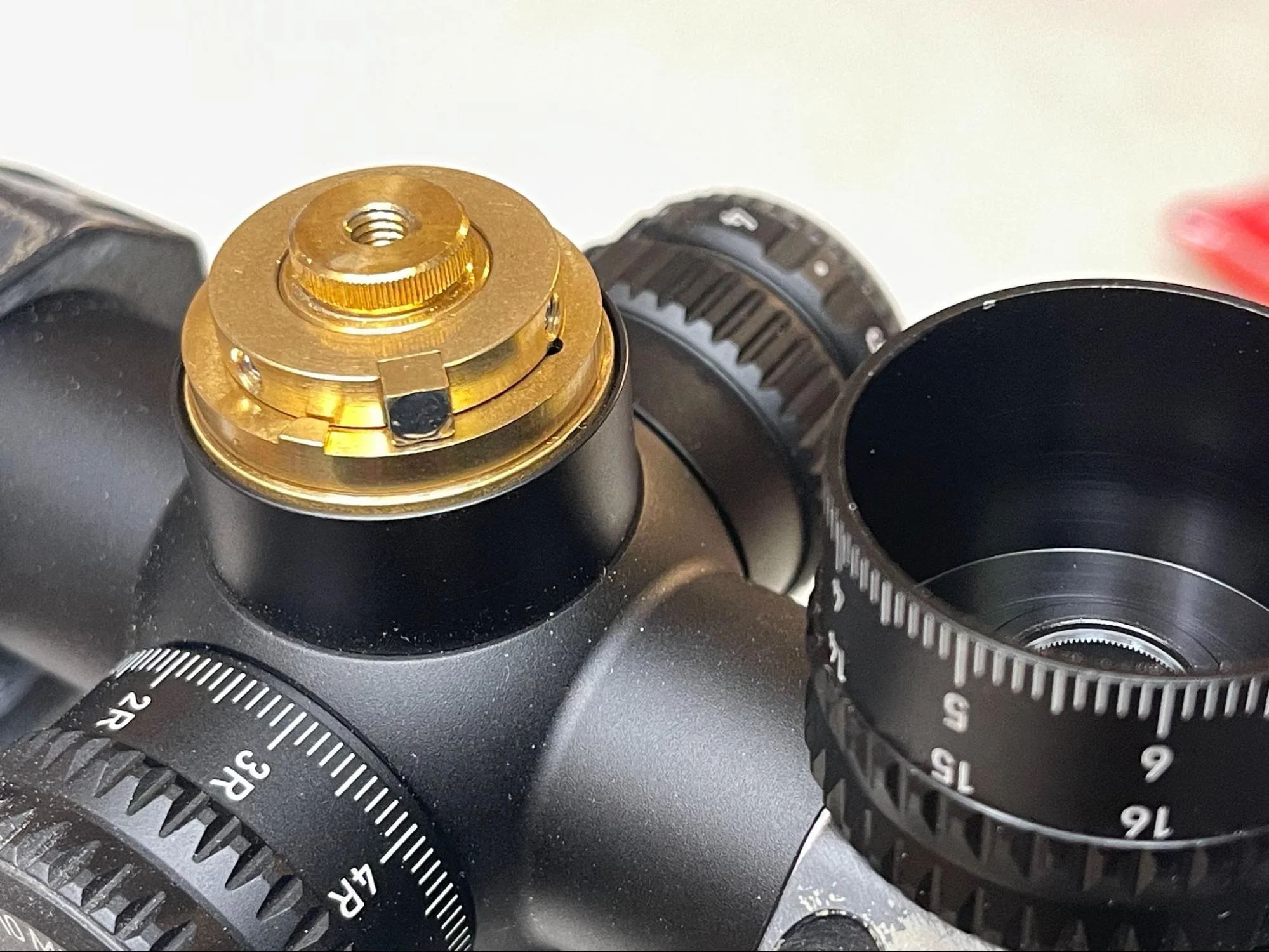

athlon heras scope zero stop
The zero-stop was easy to figure out

ILLUMINATED APRS9 RETICLE

Reticles are another quite subjective topic, depending on the shooter. I am not particular about any one design, as there are so many good ones out there. The Athlon reticle was perfectly serviceable. It had enough of what I liked and only a little of what I didn’t.

I like the even number notations, as it’s easy to get lost without them. The “Christmas tree” style drop table is handy for measuring misses and holding offsets.

The illumination is nice to have, though rarely used. I appreciate Athlon having put off settings between each illumination setting.

athlon heras APRS9 reticle
The APRS9 reticle

TURRET LOCK

The Heras uses a locking windage turret. It is engaged by pushing in on the turret itself. If you need to adjust the windage, you can pull the turret out and then adjust it before locking it again.

SCORE CARD

RELIABILITY (9/10)

I found no issues with the reliability of the Athlon Heras; the mechanical systems inside the scope function flawlessly for me during testing. Despite the cold fall weather and my heavy breathing from dad-hiking, the lenses stayed clear, and the image was always bright.

ERGONOMICS (9/10)

Again, I couldn’t find anything I disliked about the Athlon Heras’s functional features. The turrets and other controls were easy to reach and manipulate.

CUSTOMIZATION (8/10)

The Heras came with some typical accessories and others that weren’t so typical. I appreciated the included sunshades, as I almost always use them. Athlon also included flip-caps; they are cheap Chinesey, but they work.

The Heras would be unstoppable if it had the added benefits of a 34mm tube.

APPEARANCE (8/10)

The Heras looks like just what I would expect for the price. I mentioned I don’t care for the rounded edges, but that’s just me. I gave it an eight out of ten, not because there is anything wrong with it, but because my trained eye can spot a Chinese scope and its finish from a thousand yards away.

VALUE (9/10)

There are very few things about this scope I don’t like. The few gripes I have about the scope all but vanish when you look at the price tag.

athlon heras on desert tech srs a2 Rocky Mountain shooting
This combination made a great fit for Rocky Mountain shooting

CONCLUSION

I’ve heard many folks talk about the Athlon line of rifle scopes over the past few years, and my first experience with this one has been quite positive.

For a very competitive price, you get a rifle scope that performs well both optically and mechanically. The ten MIL turrets and zero-stop are fantastic features for a scope at this price.

And if that wasn’t enough, the 56mm objective certainly gives a bright and clean image. If you are an aspiring competition shooter or looking into perfecting your long-range hunting game, this scope would be a great tool to add to your collection.

-CBM

Riton Optics 5 Primal 2-12X44 Rifle Scope

INTRODUCTION

I’ve had the good fortune to play with a few Riton scopes over the years, and I am happy to bring you another one today. The Riton Optics 5 Primal 2-12X44 Rifle Scope (which I’ll refer to as 5 Primal) is a second focal plane riflescope that is a perfect fit for those looking for a good hunting scope. The Riton 5 Primal brings many great features to the 2-12 scope world.

Aside from its core features, the affordable price of the 5 Primal makes it an excellent option for many folks out there with a lower budget. Riton Optics does a good job of offering a broad enough selection for most shooters to find what they need.

As we look into the 5 Primal today, keep in mind how its features may benefit or hinder your practices behind the rifle. Only you can evaluate how well it will serve your purposes.



Riton 5 Primal mounted to the Q Fix
The Riton 5 Primal mounted to the Q Fix.

5 PRIMAL 2-12Ă—44 REVIEW

SPECIFICATIONS

Specification Details
Magnification 2-12
Parallax Adjustment 10-infinity
Tube Diameter 30mm
Objective Lens Diameter 44mm
Focal Lens Position Second Focal Plane
Lens Coating Fully Multi-Coated, Full Wide Band, Waterproof Coated, Low Light Enhancement
Reticle PHD
Field of View at 100 yds 55.1ft – 9.4ft
Material 6061-T6 Aircraft Grade Aluminum
Eye Relief 3.5in/90mm
Exit Pupil Low 8.3mm – High 3.5mm
Click Value at 100 yds/m 1/4 MOA
Adjustment Range 90 MOA
Mounting Length 4.2″/106mm
Length 12.5in/317mm
Weight 1.5lbs/24oz
Included Items Flip-Up Lens Covers, Lens Cloth, Allen Key

PROS & CONS

My pros and cons list may confuse you, so let me explain a little before we get into it. Your specific purpose might dictate whether some of these features are an asset or a liability.

For example, I like first focal plane reticles, but they may not be ideal for many scenarios. Same with capped turrets. I prefer exposed turrets, but you may want capped turrets.

PROS
  • Affordable price
  • Lifetime warranty
  • 30mm tube
  • Included flip caps
  • Adjustable throw lever
  • Compatible with compressed air rifles
  • Quality reticle
CONS
  • Capped Turrets
  • Second focal plane
  • Made in China
Shop Riton Optics at Palmetto

FIELDING THE 5 PRIMAL 2-12Ă—44 RIFLESCOPE

I mounted up the 5 Primal to a rifle I had handy using a 30mm one-piece scope mount. I did a quick boresight job before hitting the range with it. The hand-adjustable turrets are easy to adjust, the ÂĽ MOA clicks are easily felt, and a complete turret rotation gives you 25 MOA of elevation.

Riton 5 Primal 2-12x44 close up
The 2-12X44 mounted perfectly in the Aadland 30mm scope mount.

With the scope mounted to a Q Fix chambered in .308, it would be a fine little rifle to take out in the field for a hunt. The 5 Primal made an excellent companion to the rifle.

I really like the 2-12 power zone for hunting. I often think people over-magnify their hunting rifles, but I prefer having a wide field of view to watch impacts and potentially escaping animals after a shot. Even when hunting with bigger scopes like a 5-25, I still rarely engage animals above 14 power.

Long-range

After zeroing the scope, I used the reticle to make shots all across a deep and long canyon. The hold-over points were easy to keep track of. I like when reticles are labeled at least every few lines, which applies to the 5 Primal. Using the reticle for holdovers worked great at 12X or doubling values at 6X.

Riton 5 Primal 2-12x44 reticle
A look through the 5 Primal at about 3X at 450 yards.

The parallax/focus allows you to focus on targets as close as 10 yards, which could come in handy with an air rifle. But for my .308, it wasn’t so necessary.

The low profile of the 5 Primal makes for a good pack rifle to throw over your shoulder, with few things to hang up on as you hike through the forest. The included flip-caps also helped keep the lenses clean and away from contaminants.

Different throw lever options are also handy, making it easy to adjust the magnification quickly and without having to look for it. It’s also nice to be able to pull the throw-lever off if it creates a snag point for you.

The optical clarity was fine for me, as I wasn’t expecting something incredible from a scope at this price point. It’s also fair to point out that the lower power magnification doesn’t magnify flaws as much, either, so you’re less likely to see them.

Shop Riton Optics at Firearms Depot
Scopelist also has a great selection of Riton Optics
Palmetto is another good place to shop Riton Optics

FEATURES

PRECISION HUNTING DOT (PHD) RETICLE

The PHD reticle is simple enough, yet it gives you 20 MOA in three directions for measuring impacts and holding over. Points are labeled at 10 and 20 MOA, with some good subtensions down to 1 MOA as you near the center of the reticle.

Riton 5 Primal 2-12x44 reticle sky view
Looking at the sky with the PHD reticle

The second focal plane nature of the reticle allows for pretty fine aiming points. I’ll admit, I wouldn’t be against having a first focal plane reticle in this scope, either. The low power settings would likely be useful with the FFP reticle, though it might require a finer reticle.

ADJUSTABLE THROW LEVER

I like throw levers, and this was a nice little feature for those like me who like them. Built-in throw levers can occasionally be in the wrong place or cause contact points with things like bolt handles and the fingers holding them.

Riton 5 Primal 2-12x44 controls
The throw lever was easy to adjust

The ability to remove the throw lever and install it in another position on the power ring is much appreciated. As is the ability to just remove it if needed.

CAPPED TURRETS

As I mentioned above, this can be a good or bad thing, depending on your shooting task. If you need to adjust your elevation frequently, such as you would in a competitive shooting scenario, capped turrets may be a little less desirable. You can, of course, leave the caps off, but I lost quite a few turret caps back in the old days doing that.

For a hunting rifle like the one I tested here, I think the capped turrets are fine, since I likely wouldn’t engage anything beyond 500 yards with it. For those kinds of ranges holding over with the PHD reticle is fine for me.

Riton 5 Primal 2-12x44 controls moa adjustment
To use the cap or not use the cap, that is the question.

CONCLUSION

The Riton 5 Primal 2-12×44 scope is an excellent choice for someone shopping in the sub $1,000 price range. The scope isn’t what I would call super light; instead, it’s built pretty robust, which I’d prefer sometimes.

Riton 5 Primal 2-12x44 on q the fix in mountain background

It should do a great job of providing accurate shooting for most practices. The overall performance of the scope and warranty from Riton makes the scope a pretty safe bet.

Having used several Riton scopes now, I would feel confident recommending them for such purposes as I’ve mentioned.

-CBM
